What is FEA - Finite Element Analysis/Strength Testing?
Finite Element Analysis (FEA) is a powerful and highly effective computer simulation technique used by engineers to understand the behavior of mechanical parts under various load conditions. This method has revolutionized the way products are designed, tested, and optimized in numerous industries, from automotive to aerospace. In this article, we’ll delve into what FEA is, how it works, and why it’s crucial in testing the strength and durability of products like forged wheels.
What is Finite Element Analysis (FEA)?
FEA, or Finite Element Analysis, is a computational method that simulates how a mechanical part will respond to different forces and conditions. By dividing a complex object into smaller, finite elements, FEA models the behavior of each individual element under stress, heat, vibration, or other load conditions. These individual results are then combined to predict the overall behavior of the entire structure.
Think of FEA as a virtual testing ground where engineers can analyze the performance of a product before it’s even manufactured. Instead of physically testing prototypes—an expensive and time-consuming process—FEA offers a digital alternative, helping engineers identify potential weaknesses, stress points, or design flaws early in the development cycle.
How Does FEA Work?
FEA operates by subdividing a large and complex part (like a wheel or chassis) into smaller components, often referred to as "finite elements." Each of these elements is analyzed individually for its behavior under a particular set of conditions. These elements are connected by shared points, called nodes, that enable the computer model to simulate real-world mechanical interactions.

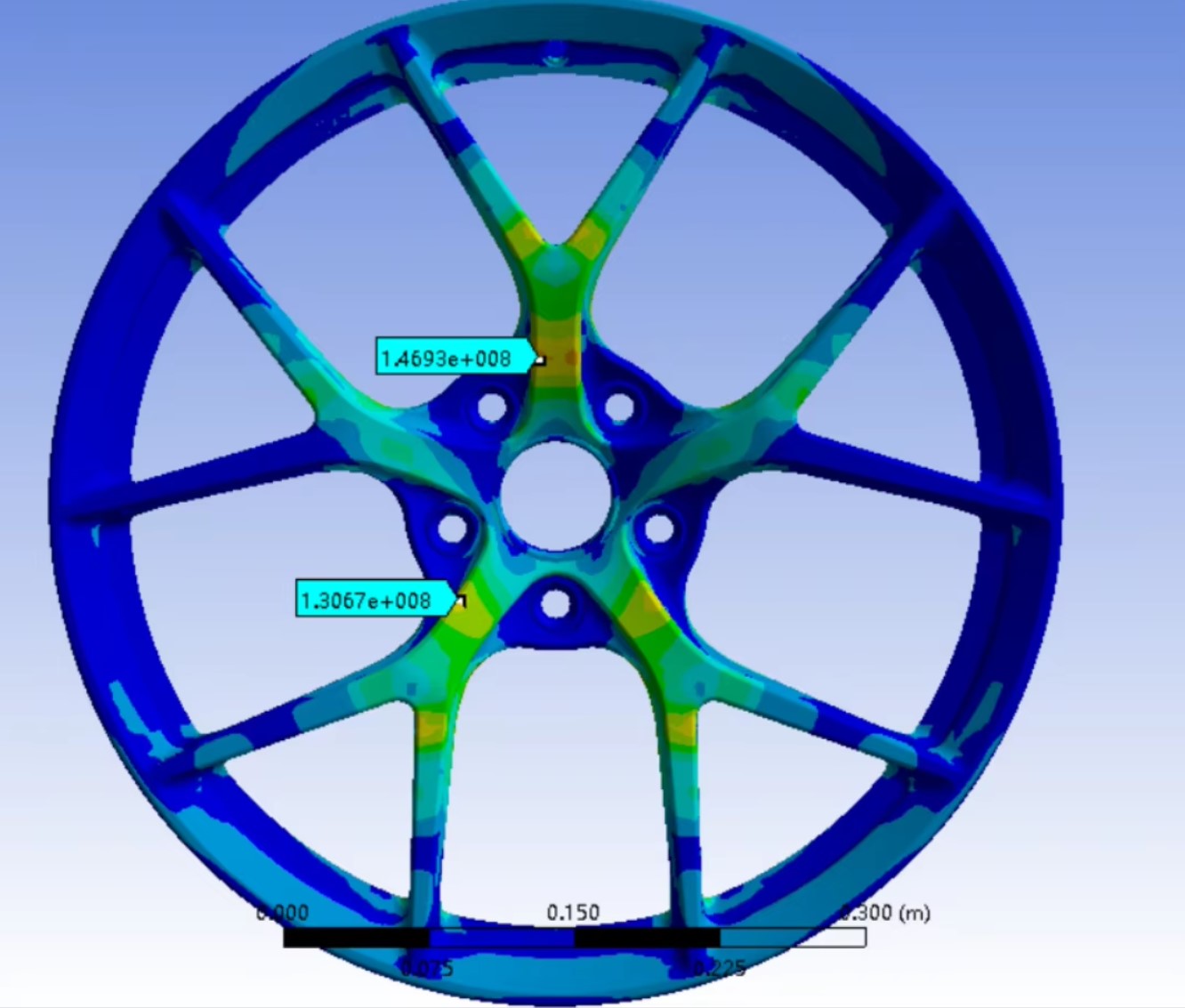

The simulation is based on mathematical equations that predict the part's response to applied forces, such as weight, pressure, or torque. Once all elements are tested, the results are aggregated, providing a detailed representation of the part’s overall performance. The results are often displayed in easy-to-understand graphical formats, highlighting areas that may experience high stress or are at risk of failure.
FEA in the Wheel Industry
In industries such as the automotive sector, FEA plays a crucial role in ensuring the safety and performance of critical components like wheels. For custom-made forged wheels, traditional physical testing methods like radial load, impact, and fatigue tests are not always feasible. This is where FEA becomes invaluable.
Unlike mass-produced cast and flow-formed wheels, which can be tested with physical prototypes, custom wheels require simulations to ensure structural integrity without destructive testing. FEA allows manufacturers to perform "virtual" strength tests, simulating various driving conditions and forces that a wheel would experience on the road. This process is essential for verifying that the wheels are safe, durable, and able to handle the stresses they will encounter.
What Does FEA Test For in Wheels?
When conducting FEA on wheels, several critical performance factors are analyzed:
-
Radial Load: This test simulates the weight the wheel must withstand when mounted on a vehicle, driving on the road. It helps engineers determine if the wheel can support the vehicle’s weight without deforming or failing.
-
Impact Testing: The impact test simulates how the wheel behaves when subjected to sudden, forceful impacts (such as hitting a pothole or debris). This test ensures that the wheel can absorb impacts without cracking or breaking.
-
Fatigue Testing: This simulation mimics the repetitive cornering and braking forces a wheel experiences over time. The goal is to predict how the wheel holds up under repeated stress, ensuring it won’t fail after prolonged use.
These tests help manufacturers ensure that their wheels will withstand real-world driving conditions and remain safe throughout their lifespan.
Why is FEA Important?
FEA is critical for the design and safety of aftermarket parts like custom forged wheels. While some manufacturers may claim to perform FEA testing, it’s essential to ensure that the results are backed by actual reports. A reputable manufacturer should be able to provide an FEA report, showcasing the results of the simulations they performed on their products.
Safety is paramount when it comes to wheels—particularly when driving at high speeds. A failure in the wheel’s design could lead to catastrophic consequences. That’s why FEA is essential in the wheel industry; it allows manufacturers to identify weaknesses and optimize designs before a product ever reaches the market.
By using FEA, manufacturers can create wheels that are lightweight yet strong, optimizing performance while ensuring that they meet strict safety standards, such as TUV (Technischer Überwachungsverein) certification. This thorough testing process helps guarantee that the wheels will be safe to use in real-world conditions.
Conclusion
FEA is a vital tool in modern engineering, particularly in industries where product safety and performance are of the utmost importance. By simulating how a product behaves under various conditions, engineers can optimize designs, reduce costs, and ensure that products meet safety standards before they ever leave the design table.
For products like custom forged wheels, FEA testing provides invaluable insights into how a design will hold up under stress, impact, and repeated use. Whether you’re designing a new wheel or assessing an existing one, FEA ensures that your product is safe, durable, and ready for the road.
By understanding the role of FEA in the wheel industry, consumers can make more informed decisions when purchasing aftermarket parts, ensuring both performance and safety are prioritized.
